Mitek Slant Nail Face Mount Joist Hangers
Mitek Slant Nail Face Mount Joist Hangers
Mitek Slant Nail Face Mount Joist Hangers
Mitek Slant Nail Face Mount Joist Hangers
Mitek Slant Nail Face Mount Joist Hangers

Mitek Slant Nail Face Mount Joist Hangers

Mitek

SKU: 43210277
Available Inventory: 8
  • $1.59
    Unit price per

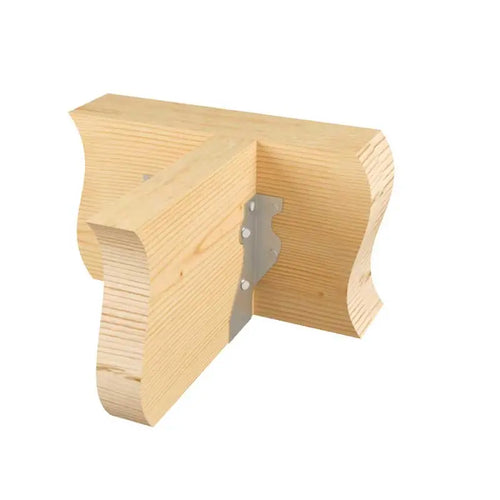

The HUS, JUS, and MUS  hanger series offers double shear nailing. MiTek’s dimple allows for 30° to 45° nailing through the joist into the header resulting in higher loads and less nailing. Slant/double shear nailing allows for higher load values, fewer nails, and faster installation.
Materials: JUS – 18 gauge; MUS – 18 gauge; HUS – 14 or 16 gauge
Finish: G90 galvanizing
INSTALLATION
  • Use all specified fasteners.
  • Joist nails must be driven at a 30° to 45° angle through the joist or truss into the header to achieve listed loads. Slant/double shear nails must be used to achieve listed load values.
  • JUS / MUS – 16d sinkers (0.148″ x 3-1/4″) may be used where 10d commons are specified with no load reduction.
